13.8. Generating and converting SSH keys

13.8.1. SSH and SFTPPlus

SFTPPlus, as well as other standard SFTP clients and servers, make use of SSH DSA and RSA keys for implementing an authentication method that allows partners to exchange credentials over insecure connections.

When SSH key authentication is used, the credentials are formed by associating a username to an SSH key pair. The SSH key pair contains a public part and a private part.

To exchange credentials, partners will each generate an SSH key pair on their own computers and will send the public part of a key pair to their partner. Their partner will then use it to configure SFTPPlus to only accept SFTP clients that can prove they have the private part of the key pair.

An SFTP client that only holds the public key part of the key pair will not be able to authenticate itself to SFTPPlus' SFTP service.

SFTP clients and servers can choose to store the SSH key pair in their own format and unfortunately there is not a single format used by all SFTP software for storing and managing SSH keys.

This documentation covers SSH key management for some of the most popular SFTP software.

13.8.2. OpenSSH Project

The OpenSSH project provides a set of programs that implement encrypted communication sessions over a computer network using the SSH protocol. It was created as an open source alternative to the proprietary Secure Shell software suite offered by SSH Communications Security and is available for many operating systems such as Linux, macOS, Windows, and many more.

To generate an SSH RSA key pair in OpenSSH format, you will use the ssh-keygen tool distributed together with the OpenSSH project:

ssh-keygen -t rsa -C "KEY_COMMENT" -f KEY_FILENAME

Note

ssh-keygen will ask you to provide a passphrase to be used for encrypting the newly generated SSH private key. If you enter an empty password and the SSH private key will be stored on the local disk in unencrypted format.

You can replace rsa with dsa to generate a DSA key pair. You can replace KEY_COMMENT with any text that should help you identify the key (more so, its purpose) at a later time.

This will generate the following files:

  • KEY_FILENAME containing the private part of the key

  • KEY_FILENAME.pub containing the public part of the key

13.8.3. PuTTY Client

PuTTY is a free and open source application which acts as a client for the SSH, SFTP, SCP, and Telnet protocols. PuTTY is available on many Unix-like operating systems, but is most commonly used on Windows.

13.8.3.1. Unix-like systems

To generate an SSH key pair, PuTTY provides the puttygen tool:

puttygen -t rsa -C "KEY_COMMENT" -o KEY_FILENAME.ppk

Note

puttygen will ask you to provide a passphrase to be used for encrypting the newly generated SSH private key. You can enter an empty password and the SSH private key will be stored on the local disk in unencrypted format.

You can replace rsa with dsa to generate a DSA key pair. You can replace KEY_COMMENT with any text that should help you identify the key (more so, its purpose) at a later time.

The command will create the KEY_FILENAME.ppk file that will contain both the public and private part of the SSH key pair.

PuTTY stores SSH key pairs in a format that is not compatible with the OpenSSH project or SFTPPlus.

The puttygen tool can be used for converting an SSH key stored in PuTTY format to a key stored in OpenSSH format.

To extract the private part of an SSH key stored in PuTTY format and store the result in OpenSSH format:

puttygen PUTTY_FILE.ppk -O private-openssh -o OPENSSH_FILE

To extract the public part of an SSH key stored in PuTTY format and store the result in OpenSSH format:

puttygen PUTTY_FILE.ppk -O public-openssh -o OPENSSH_FILE.pub

The puttygen tool also allows converting the private part of an SSH key stored in OpenSSH format to PuTTY format:

puttygen OPENSSH_FILE -o PUTTY_FILE.ppk

13.8.3.2. Windows

Puttygen for Windows can be downloaded from:

http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html

Open puttygen, select the type of key to generate and the number of bits for the key.

PuttyGen main window

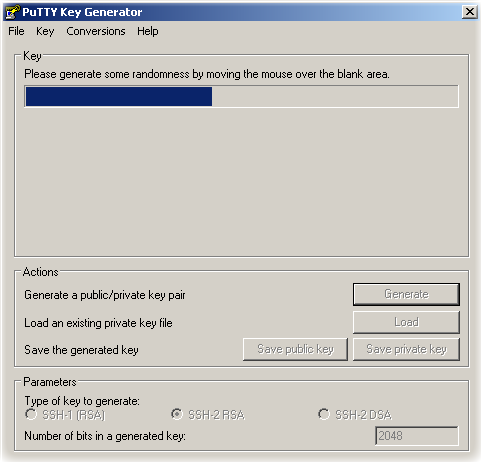

Click "Generate" and move your mouse over the blank area until the keys are generated.

PuttyGen generate key process

Provide a passphrase to be used for encrypting the newly generated SSH private key. You can enter an empty password and the SSH private key will be stored on the local disk in unencrypted format.

Add a comment that should help you identify the key (more so, its purpose) at a later time.

PuttyGen generated key

Clicking one of the 'Save public key' or 'Save private key' button saves the SSH key pair in a format that is not compatible with the OpenSSH project.


The puttygen tool can be used for converting an SSH key stored in PuTTY format to a key stored in OpenSSH format.

To export an already opened key: Conversions -> Export OpenSSH key.

PuttyGen Export key in OpenSSH format

To export the public key in OpenSSH format, open a text editor and copy-paste the contents of the "OpenSSH public key" text box. Save it as a plain text file.

PuttyGen copy public key

13.8.4. Extracting the public key from a PKCS#12 format file

The PKCS#12 format is either a .PFX or .P12 file which contains the private key with its X.509 certificate and also optional CA certificates.

In this example, we will be using the .PEM extension for later use to extract the OpenSSH public key.

Decrypt and save as .PEM:

openssl pkcs12 -in certificate-and-key.p12 -nokeys -out certificate.pem

Using the X.509 .PEM encoded certificate, extract the public key by following the instructions in the next section.

13.8.5. Extracting the public key from the X.509 Certificate

This section describes the method to extract the PKCS#8 public key from an X.509 .PEM encoded certificate using the openssl toolkit. Following that, use the ssh-keygen toolkit to convert the OpenSSH public key.

Use the command below to extract the public key from the X.509 certificate stored as a .PEM file and save the key into a specified .PUB file:

openssl x509 -pubkey -noout -in certificate.pem > pubcertkey.pub

The format should look like below in the .PUB file. Note that this is the public key in PKCS#8 format:

-----BEGIN PUBLIC KEY-----
CONTENT_OF_THE_PUBLIC_KEY
-----END PUBLIC KEY-----

If the X.509 certificate is not stored as a PKCS#1 .PEM format, then it is stored in another format with common ones being .CRT, .CER and .KEY.

Convert the PKCS#8 format to OpenSSH public format

Use ssh-keygen to convert from PKCS#8 format:

ssh-keygen -i -m PKCS8 -f path-to-pcks8.pub

The ssh-rsa or ssh-dss output may look like below:

ssh-rsa AAAAB3_CONTENT_OF_THE_KEY_OqLrL8bfLCu/ description

With this format, you can now associate the OpenSSH public key to the account that requires it either in the Web Manager GUI or in the configuration file.

13.8.6. Obtaining the MD5 fingerprint from an OpenSSH public key

To show the fingerprint, save the OpenSSH public key then run -E md5 using ssh-keygen:

ssh-keygen -l -E md5 -f my_sshkey.pub

The fingerprint output should look like:

2048 MD5:25:96:e2:88:0c:a7:49:46:s2:f9:c6:11:m8:3f:ce:e9 (RSA)

13.8.7. SSH Keys Management in SFTPPlus Web Manager

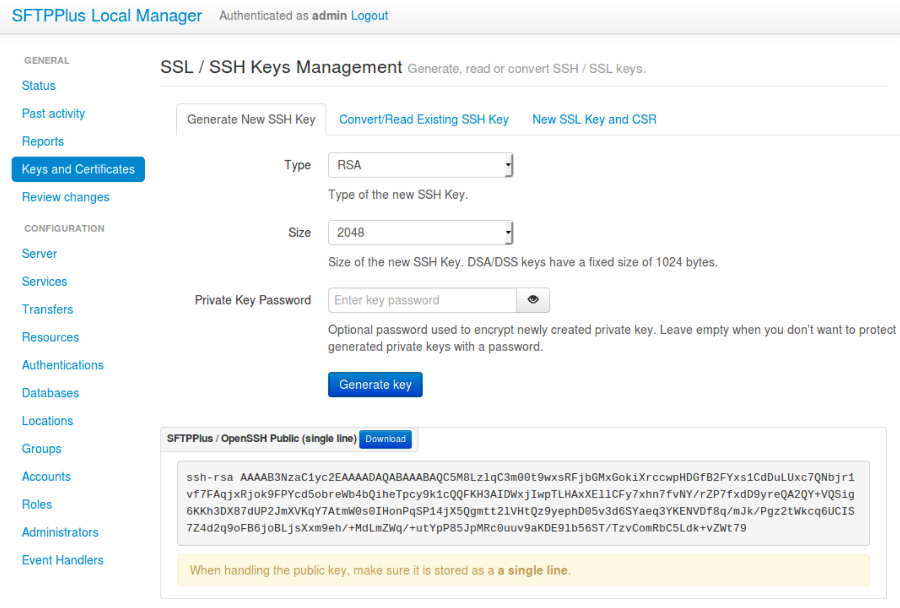

Users can also generate new SSH keys and convert/read existing SSH keys via the SFTPPlus Web Manager.

../_images/gallery-key-management.png
